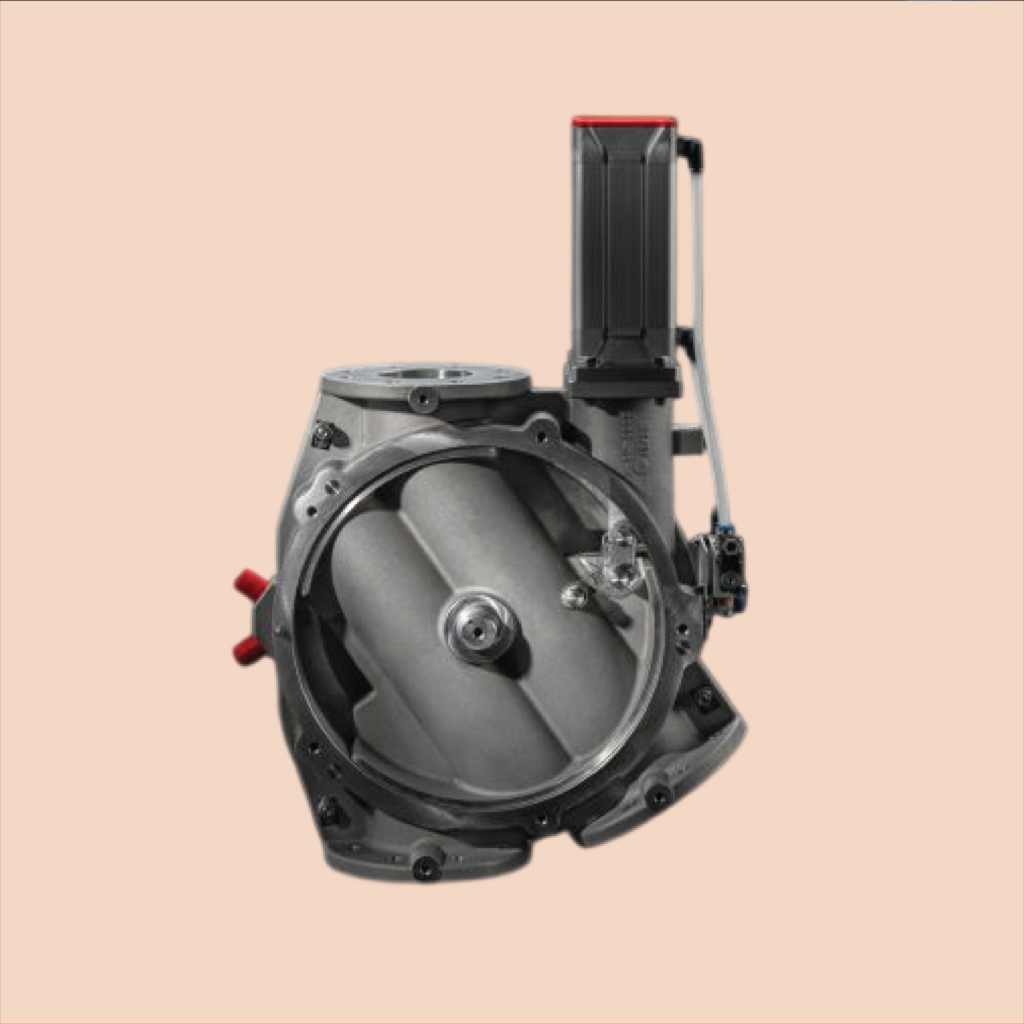

PTD Plug Diverter valve
Especially designed to route powders and pellets in pneumatic conveying systems with minimum degradation.
The PTD plug diverter valve is especially designed to route powders and pellets in pneumatic conveying systems with minimum degradation. Precision machining, proper sealing, and an obstruction-free internal geometry guarantee a smooth passage of your product. The user-friendly, foolproof design enables quick on-site internal examination, servicing, and – when necessary – replacement of seals. The PTD design features no moving parts on the outside and complies with all current guidelines regarding safety in the workplace.
Product Characteristics:
- Two-channel design
- Minimal maintenance
- Compact form
- Versions with electrical drive available.
- Wear-resistant pipes optional.
- Temperature range: -25°C to +80°C
- Pressure up to 3 barg (static) / 6 barg (inflatable seals)
- Pressure shock-resistant up to 10 barg
- EC 1935/2004 compliant.
- ATEX 2014/34/EU certification available
