MALD/MLD Rotary valves
Medium-duty rotary valve

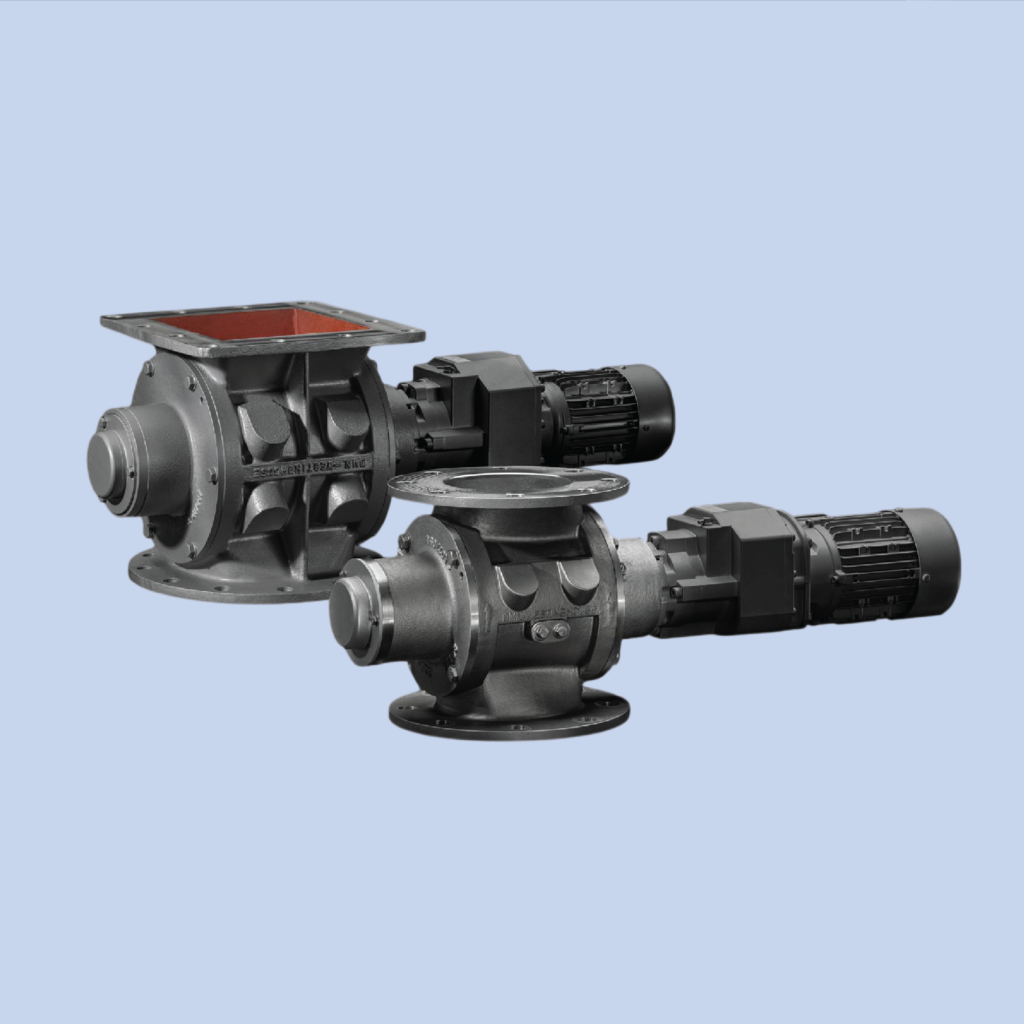

The MALD and MLD medium-duty rotary valves offer excellent value and versatility for various applications. Ideal for vacuum conveying, big bag emptying, cyclone applications and general use. Both valves feature simple construction and direct drive. The MALD uses the AL housing with two round flanges and is optimal for powder handling. The MLD has an ML housing with larger round and square flanges, increasing its efficiency with free-flowing products and facilitating the transition between different connections.
Product Characteristics:
- Compact construction
- Slanted inlet/outlet
- Suitable for VFD control
- Direct drive as standard
- Round flange drilling for PN10 and ANSI 150 lbs available
- MLD serves as adapter from round to square and vice versa
- Temperature up to +65°C
- Pressure up to 1 barg
- Pressure shock resistant up to 10 barg
- Compliant with EC 1935/2004
- ATEX 2014/34/EU certification available
